Feb 5, 2019

2019 Creality Ender-3X – Review the Specs of This 3D Printer

The Creality Ender-3X is another upgrade of Creality's popular Ender 3 series. Join us as we review the specs and everything else we know about this 3D printer.

When it comes to picking between Chinese 3D printer manufacturer Creality’s cheaper options, the Ender 3 has long been our favorite. It boasts a low price under $200, has decent print volume, is open source, easy to assemble and can produce high-quality prints.

The upgraded Ender-3 Pro looked to improve on its predecessor, but it lacked enough punch for the price to usurp its older counterpart.

If you already have one of these printers, there are many upgrades you can make to your existing Ender 3 or 3 Pro.

But the Creality Ender-3X, a lesser-known Ender offering, is on the market. Though we haven’t had a chance to try one out for ourselves, we have pored over the specs and done a little guesswork on the machine to help you decide if it’s worth your money.

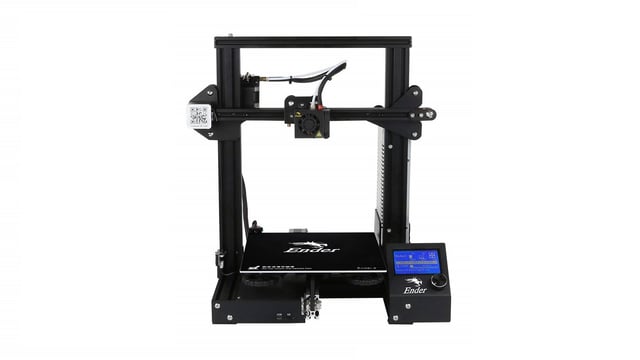

Creality Ender 3X

show product

Creality Ender-3X – Review the Specs of This 3D Printer Features

A glass bed, additional nozzles and some additional minor changes are the differences between the ender Ender-3 and the Ender-3X.

This machine is almost identical in specs to the Ender 3 and the Ender 3 Pro, however, it does differ in a few significant ways.

1. Tempered glass print bed

Most notable is the 3X’s tempered glass print bed, a welcome change from the detachable magnetic heated bed in the Ender 3 Pro. The glass print bed is mounted on the aluminum plate, which improves material adhesion, makes the surface flatter and simplifies removing prints.

2. MK-10 extruder

Compared to the MK-8 model, the upgraded extruder reduces the risk of clogging.

3. V-Slot with POM wheel

The machine should run more quietly thanks to this.

4. Five additional nozzles

We don’t yet know if the nozzles are the same or different sizes, but either way, more nozzles are always better than one. If they’re in different sizes, they’ll allow you to go for finer detail or faster printing (the smaller the nozzle diameter, the better the quality but slower the print speed). If they’re all the same size, you’ll have a stack of replacements in case of wear or clogging.

5. Resume print function

This is a perk made popular by the Prusa i3 MK3 3D printer and one which other Creality printers also come with. Power outages or disconnections should be no problem for 3X because it can fully recover and resume the print when it’s back up.

Creality Ender-3X – Review the Specs of This 3D Printer Tech Specs

According to Creality, the Ender-3X is capable of heating its bed to 110 degrees Celsius

GENERAL SPECS

  • Technology: FDM
  • Year: 2019
  • Assembly: Semi-assembled
  • Mechanical arrangement: Cartesian-XZ-head
  • Manufacturer: Creality

MATERIALS

  • Filament diameter: 1.75mm
  • 3rd party filaments: Yes
  • Compatible materials: PLA, ABS, TPU, composite filaments

3D PRINTING PROPERTIES

  • Accuracy: 0.1 mm
  • Layer height: 0.1 – 0.4 mm
  • Feeder system: Bowden
  • Extruder type: Single nozzle
  • Nozzle size: 0.4 mm
  • Max. build volume: 220 x 220 x 250 mm
  • Max. extruder temperature: 255℃
  • Max. heated bed temperature: 110℃
  • Max. print speed: 80 mm/s
  • Closed print chamber: No
  • Bed leveling: Manual
  • Print bed: Heated
  • Display: LCD screen
  • Connectivity: micro SD, micro USB
  • Built-in camera: No
  • Resume print: Yes

Creality Ender-3X – Review the Specs of This 3D Printer Where to Buy

According to Creality, the Ender-3X is capable of heating its bed to 110 degrees Celsius

Interested in acquiring a Creality Ender-3X to begin your 3D printing journey? You can purchase this 3D printer from the following online retailers.

Creality Ender 3X

show product
